Project Description
Electric Scooter Brushless Hub Motor Kit
For Air Wheel
3S~6S 1650W
All the buyers should have experience to install it. If not, please do not buy it.
- Is it difficult to install the this motor kit to scooter?
No, it will not be very difficult, just need change the original wheel to be our this pneumatic wheel, mount the motor with bracket and adjust the belt. - What battery is recommended for this kit?
We recommend 3S~6S lipo battery, for reference: 6S 5000mah can run more than 10km in one charge. - Is the kit include batteries?
No, the kit is for the drive device only, you also need controller, accelerator and battery. - Where should I mount the batteries ?
If you have enough hands-on skill, you can mount the battery under the board, that will hide the battery and the scooter will more nice.
If you want it easy to be mounted, you can use battery bag and mount it on the scooter frame. - Is the kit including a user manual?
Yes, we can provide a English manual. - Can this motor kit use disc brake?
This motor kit doesn’t have brake, so you need to use the scooter original brake, we will develop the disc brake in the future. - Why this motor has 3 wires only?
This motor without hall sensor (5 thin wires), so it has 3 phase wires only.
Hall sensor can make motor stable when motor start running, without hall sensor , the motor maybe shake 1 second when it start running, but after that, it running same as the motor with hall sensor.
But hall sensor is easy broken and after it broken, the motor will cann’t work normally, so that we give up hall sensor.
The kit includes:

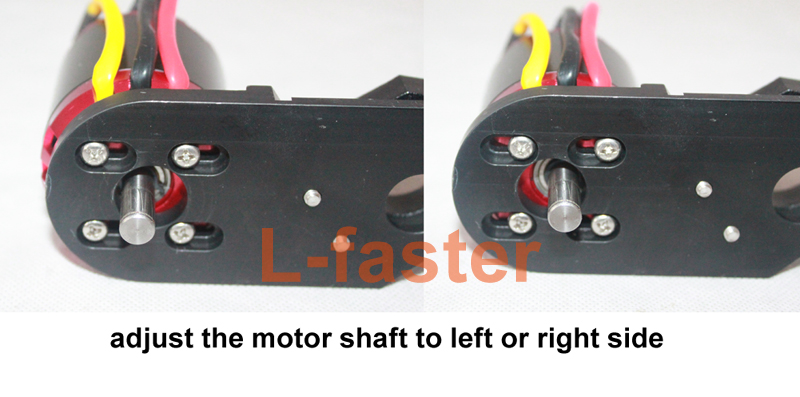

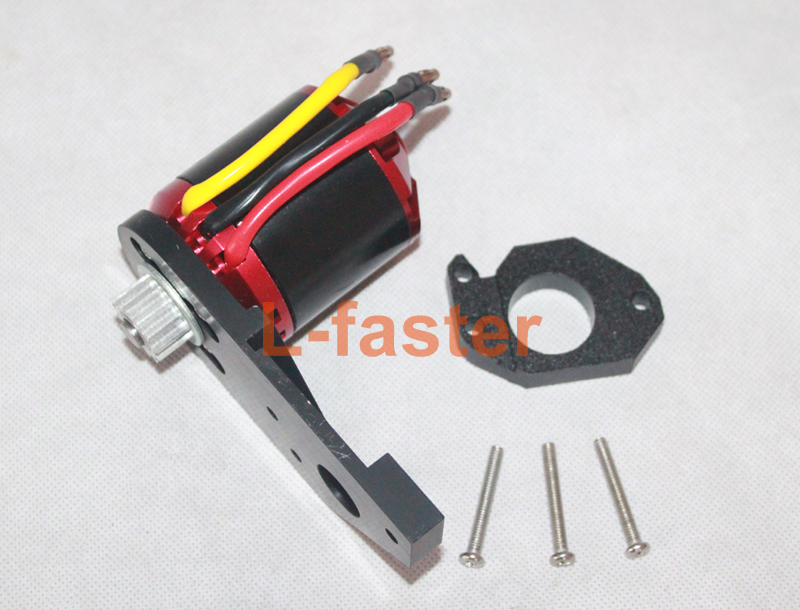

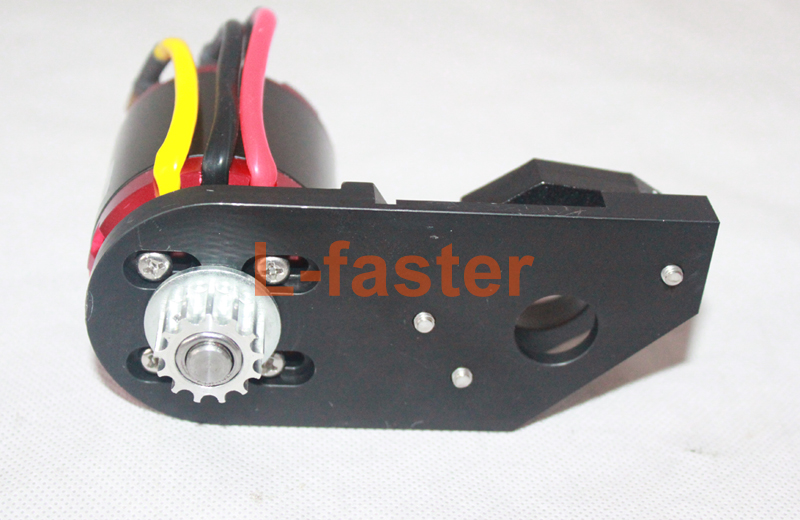

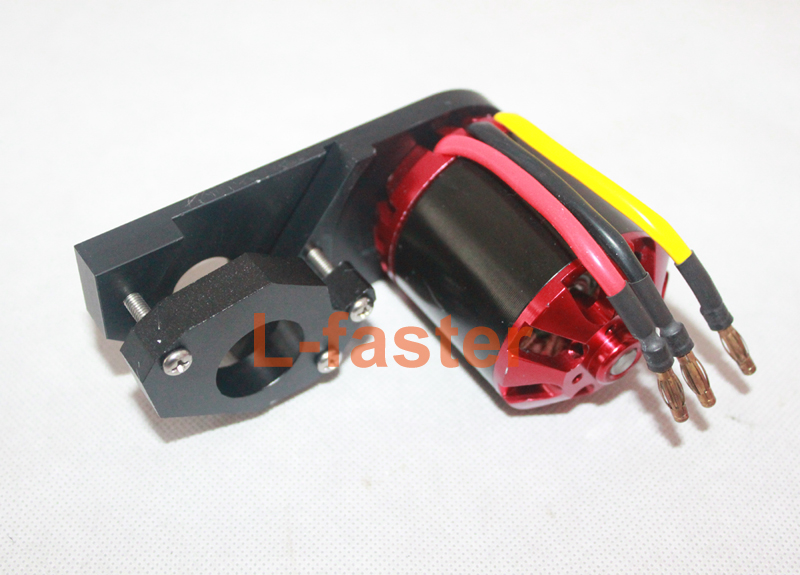

1. 1 x Motor drive device with bracket and small pulley
2. 1 x 8 inch pneumatic wheel
3. 1 x Big pulley with bracket and screws
4. 1 x Belt
Note: this kit without battery and battery charger .
Motor specification

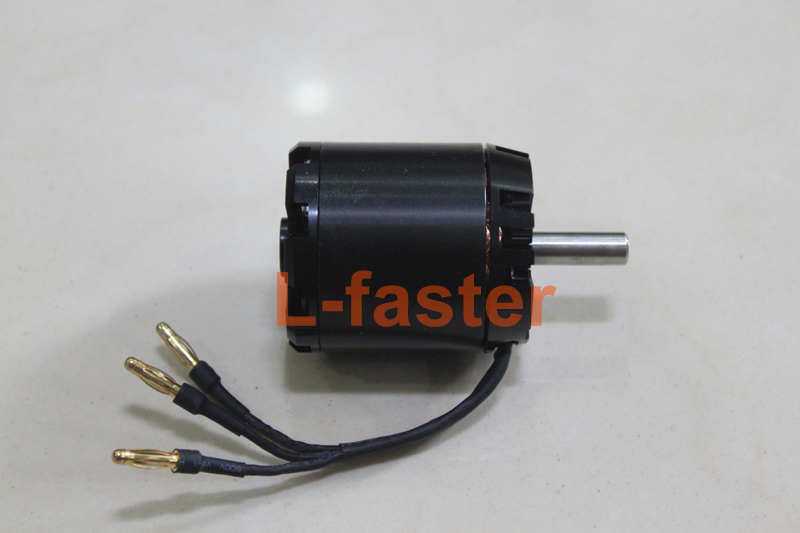

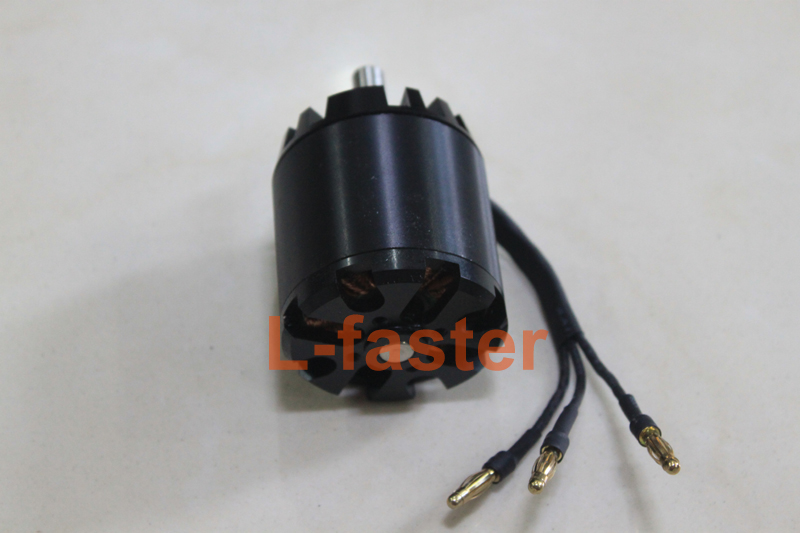

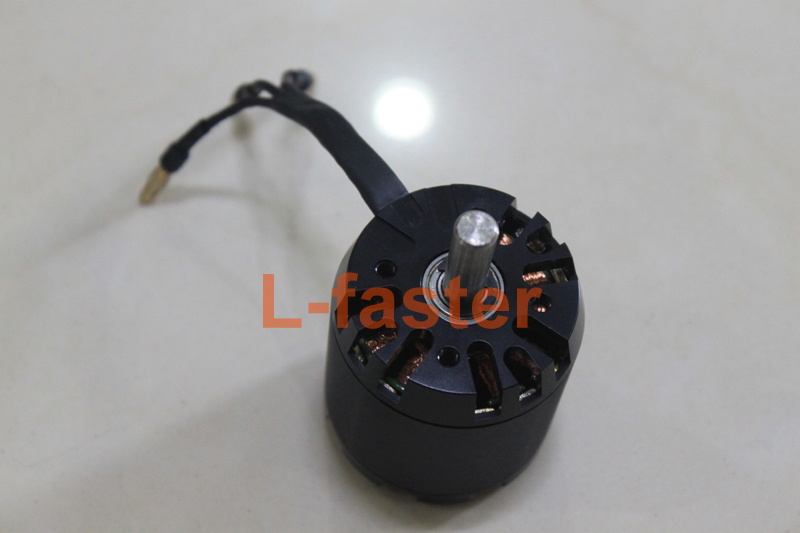

This is a 1650W brushless motor.
This power system has a unilateral bearing, so when the motor running, the wheel will running together, and when you don’t use motor, you still can ride this scooter, the motor will not rotate, so the resistance is few.
Model: N5065
Type: High speed gearless brushless motor without hall sensor
Voltage: 3S~6S
Output: 1650 Watt
Speed: 270KV (RPM/V)
Current: 100A
Net weight: 0.5 KG
